Telegraph:
A fully solid state bass amp with dual channels (clean and dirty) running in parallel.
A siimilar topography as the Compass allows you to maintain your low end while dialing in a thick, full, and articulate bass drive tone. Sit right where you want in the mix with the same 4 band parametric found in the Compass.
The Telegraph offers a unique feature known as the 'Drive Insert.' This feature allows you to replace the onboard overdrive channel on the amp with any piece of outboard gear you can think of. Run your clean tone in parallel with compression, reverb, ring mod, or even a stacked series of overdrive pedals to get your own signature bass drive. The possibilities are endless!
All bass amps are available in Tube or Class D Solid State Power Sections and come with a Balanced XLR direct out.
specs
Solid state pre-amp
2 blend-able channels (clean/drive)
Serial Buffered Effects Loop
Drive channel insert to replace on board overdrive channel with outboard gear
Class D Solid State power amp
Toroidal Power Transformer
Controls
Clean: Level
Drive: Gain, Tone, Level
Blend: blends the clean and drive channels together
EQ:
EQ on/off toggle
Bass shelf with Frequency adjustment
Treble Shelf with Frequency adjustment
Low-Mid parametric with Level and Frequency adjustment
High-Mid parametric with Level and Frequency adjustment
Master Volume
Channel switch toggle
XLR Direct out with pre/post eq toggle
OUTPUTS
Class D: 2 ohm minimum
Combo Internal load is 4 ohm. To get full power you’ll need a 4 ohm extensions cabinet.
Combo Options
1x12 - 150/300 Watt (2 Ohm Load): $1400
20.5”w x 20”t x 15”d
Eminence Beta 12
Eminence Alpha 4-4
2x10 - 200/400 Watt (2 Ohm Load): $1600
20.5”w x 24”t x 15”d
Eminence Beta 10a
Eminence Alpha 4-4
1x15 - 200/400 Watt (2 Ohm Load): $1500
20.5”w x 24”t x 15”d
Eminence CA154
Eminence Alpha 4-4 tweeter
2x12 - 600/1200 Watt (2 Ohm Load): $1800
20.5”w x 28”t x 15”d
Eminence Beta 12a x2
Eminence Alpha 4-4
POWER LEVELS
Class D output:
Dimensions:
20.5”w x 4.0625”t x 9”d
50/100w: $600 (2 ohm min speaker load)
200/400w: $900 (2 ohm min speaker load)
300/600w: $900 (2 ohm min speaker load)
600/1200w: $1200 (2 ohm min speaker load) 20.5”w x 8.5”t x 9”d
SHOWN:

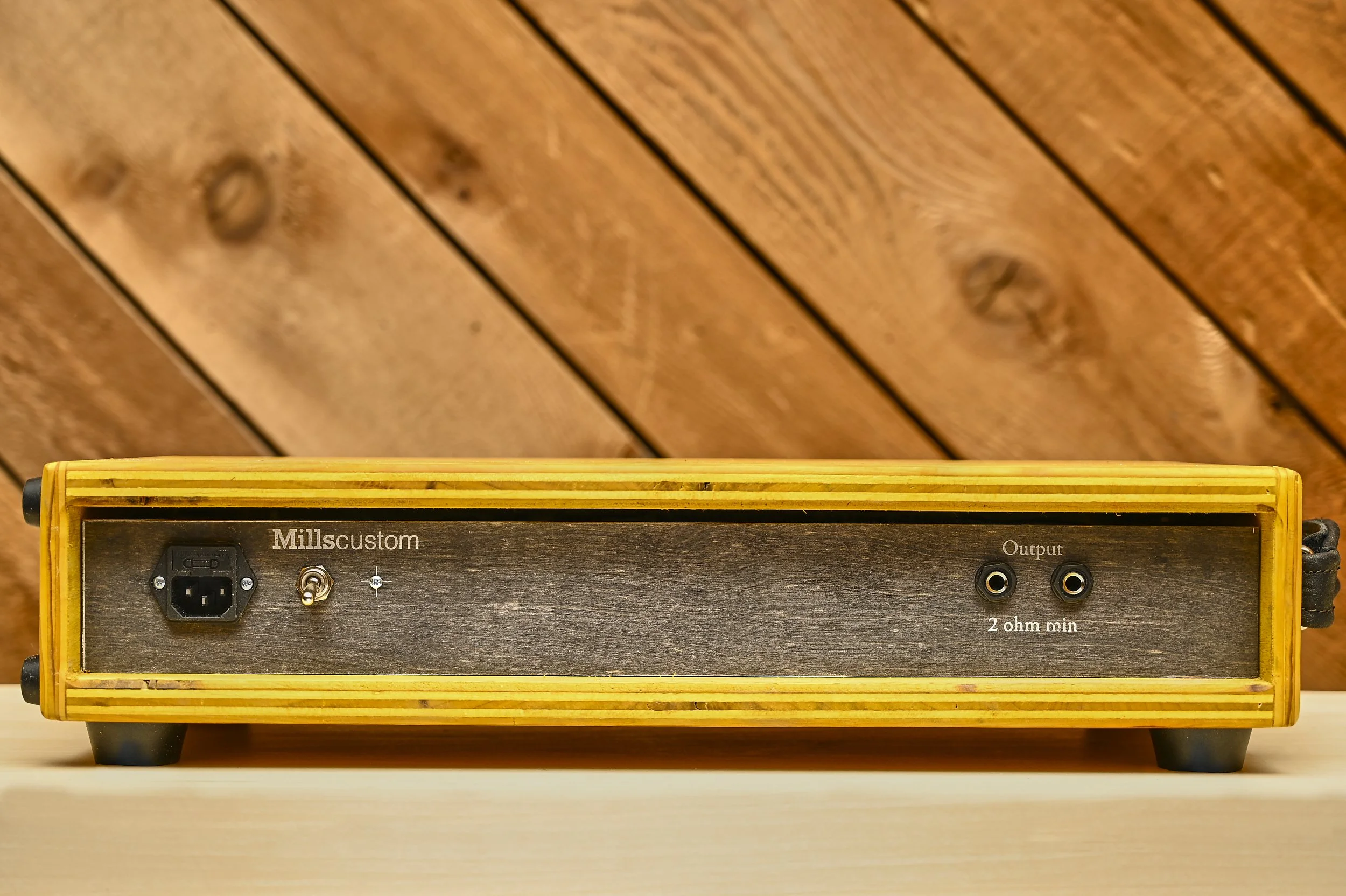

Bass Head: Telegraph 600w Solid State head
STAIN COLOR: yellow
Get a quote
Please fill out this form and we will send a Paypal invoice to your provided email address
We usually require a 50% deposit to get started. Lead time is 4-8 weeks on amps. Don’t hesitate to CONTACT US with any questions.
