Bayonet:

British inspired clean tone that was born to rock.

Highly effective as a rock and roll platform for Dirt Pedals. Warmth is the name of the game here. Rich and multidimensional, this amp is the perfect companion for anyone who relies on a lot of outboard overdrive effects to achieve their hard rock and heavy tones. This model also accells at higher power levels becoming a great tool for bass players and aficionados of heavy music.

specs

1x 12ax7

JJ EL84, EL34, KT88, KT120 power tube options

Serial Buffered Effects Loop

Toroidal power transformer saves weight

Hammond Classic Series Output Transformer

Modern MOV output transformer protection ensures long life span of large, expensive components

Controls

Channel

Gain, Treble, Mid, Bass, Level

Master

Reverb Level, On/Off Toggle, Footswitch jack (Reverb is optional. $150)

Presence, Resonance, Master Volume

outputs

7w/15w: 4/8/16 ohm

20w/40w: 4/8/16 ohm

50w: 4/8/16 ohm

100w: 4/8/16 ohm

200w: 4/8/16 ohm

300w: 4/8 ohm

power levels

15w: 2x $800

20.5”L x 8.5”T x 9”D

40w: 4x EL84 $1100

20.5”L x 8.5”T x 9”D

50w: 2x EL34 $1100

20.5”L x 8.5”T x 9”D

100w: 4x EL34 $1400

20.5”L x 8.5”T x 9”D

200w: 4x KT88 $2000.00

22.5”L x 10”T x 9”D

300w: 4x KT-120 $3000.00

22.5”L x 10”T x 9”D

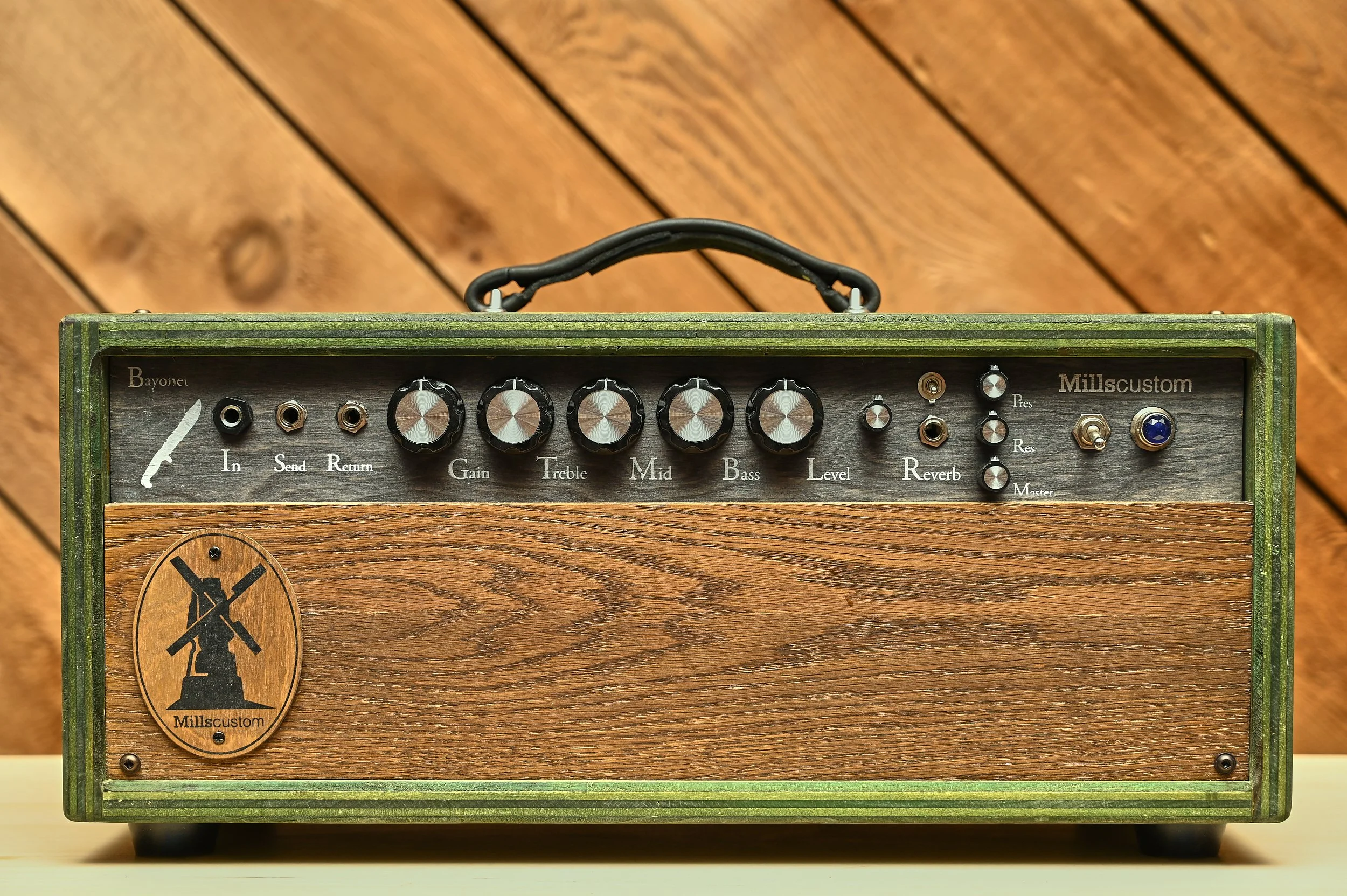

SHOWN: Bayonet REVeRB 50W

STAIN COLOR: Green
