Foundry:
The Foundry is a formidable 3 channel design that allows you to dial in a plethora of rock tones spanning the decades of guitar music.
The clean channel delivers a glassy and tame clean tone that increases with intensity as you turn up the gain knob allowing you to achieve more aggressive 70’s rock tones.
The drive channel starts in the shallow waters of british chimey cleans and progresses through to full throttle 90’s Alt Rock tones.
The Ultra Channel offers up remarkable high gain saturation perfect for any modern metal application while retaining articulation in complex chord patterns.
The Foundry is an indispensable studio tool that can achieve almost any tone you're looking to recreate. We suggest this amp for integrating the unparalleled sound of tube overdrive with the high quality modern day digital time based effects.
specs
Pre-amp: 5x 12ax7 (with effects loop)
Power Tube Compliment: Varies with options. Premium options available on order form at the bottom of the page.
Active Presence and Resonance controls to dial in custom power amp response. Each Channel switches between its own settings.
Adjustable Output Power attenuator for getting rich tube tone at bedroom levels.
Adjustable power tube bias
Options:
Spring reverb: N/A
Tube Driven Effects loop- $100
Triode/Pentode switch- changes the output tube configuration to Triode mode for a drastic reduction in output power. works great in combination with onboard attenuator and active Pres/Res controls. $100
Output Tube Switch- Available only on 4 tube models. allows to select 4 tubes or two tubes. $100
Compensated (reactive filter) Post Transformer output with Speaker mute feature: $200
Controls
Each Channel
Gain, Treble, Mid, Bass, Level
Active Presence and Resonance
Master
Global Master Volume
Output Power adjustment
outputs
15w:
2x EL84 (adjustable fixed bias)
4/8 ohm out (standard)
4/8/16 (premium Hammond 1608 transformer) $150
40w:
4x EL84 (adjustable fixed bias)
4/8 ohm (standard)
4/8/16 (premium Hammond 1645 transformer) $200
50w
2x EL34B (adjustable fixed bias)
4/8/16 (standard)
4/8/16 (premium Hammond 1650k transformer) $210
100w
4x EL34B (adjustable fixed bias)
4/8/16 (standard)
4/8/16 (premium Hammond 1650t transformer) $250
200w
4x KT88-STR (adjustable fixed bias)
2/4/8 (Hammond 1650t Standard)
300w
6x KT88-STR (adjustable fixed bias)
2/4/8 (Hammond 1650w Standard)

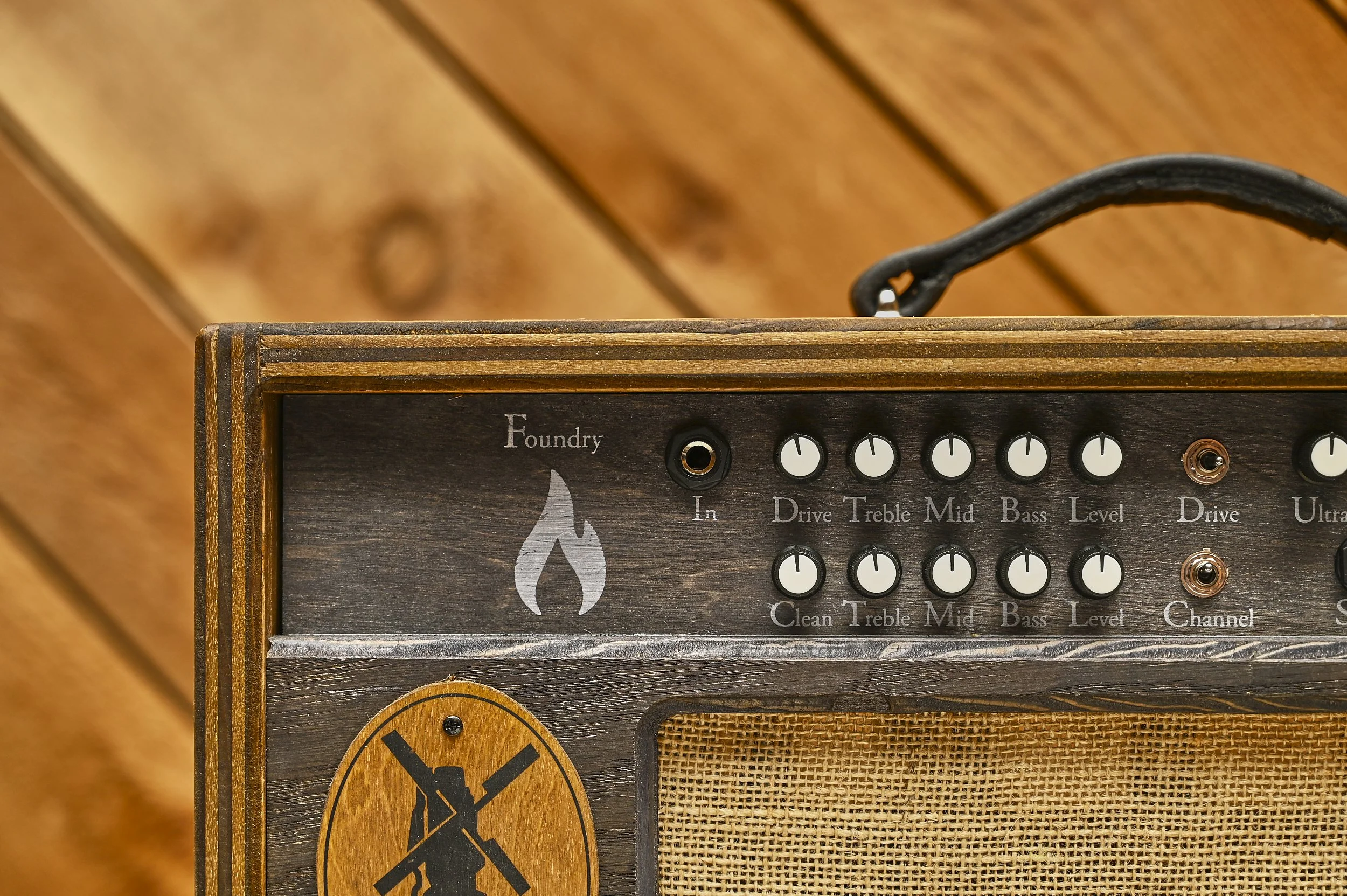

SHOWN: Foundry 100w
STAIN COLOR: Light Walnut
Grill: Natural
Get a quote
Please fill out this form and we will send a Paypal invoice to your provided email address
!!!WE ANSWER MOST EMAILS WITHIN 24HRS. IF YOU HAVE NOT HEARD FROM US WITHIN THAT TIME PLEASE CHECK YOUR SPAM/JUNK MAIL FOLDER OR CALL/TEXT: 314-390-9181!!!
We usually require a 50% deposit to get started. Lead time is 4-8 weeks on amps. Don’t hesitate to CONTACT US with any questions.
