Compass:
The Compass is a dual channel bass amp that allows you to dial in a stellar clean tube tone and then blend a tube overdrive in PARALLEL to the clean channel.
This technology can be found in many bass centered solid state overdrive pedals and has been put into practice here with a tube preamp and overdrive section. Experience the warm natural compression of tube overdrive that stands out in the mix as you use the blend knob to balance the two channels for optimum low end retention. This simple and unique design is then sent piping hot into a fully functional and intuitive Semi Parametric eq section to sculpt your bass tone to perfection.
All bass amps are available in Tube or Class D Solid State Power Sections and come with a Balanced XLR direct out.
specs
2x 12ax7
2 Channels: Clean/Dirty each with independent EQ. Dirty channel can be switched in and out via panel toggle or footswitch
Channels can blended together via Blend Control
4 band Semi-parametric EQ allows you to dial in perfect sound or can be completely bypassed with panel mounted switch
Transformer Coupled XLR output with Pre-Eq or Post FX loop option
Serial Buffered Effects Loop
Class D Solid State Power Amp
Toroidal Power Transformer saves weight
Controls
Clean: Level, Treble, Bass
Drive: Level, Treble, Bass, Master
Blend: blends the clean and drive channels together
EQ:
EQ on/off toggle
Bass shelf with Frequency adjustment
Treble Shelf with Frequency adjustment
Low-Mid parametric with Level and Frequency adjustment
High-Mid parametric with Level and Frequency adjustment
Master Volume
Channel switch toggle
XLR Direct out with pre/post eq toggle
OUTPUTS
Class D: 2 ohm minimum
Combo Internal load is 4 ohm. To get full power you’ll need a 4 ohm extensions cabinet.
Combo Options
1x12 - 150/300 Watt (2 Ohm Load): $1500
20.5”w x 20”t x 15”d
Eminence Beta 12
Eminence Alpha 4-4
2x10 - 200/400 Watt (2 Ohm Load): $1700
20.5”w x 24”t x 15”d
Eminence Beta 10a
Eminence Alpha 4-4 tweeter
1x15 - 300/600 Watt (2 Ohm Load): $1600
20.5”w x 24”t x 15”d
Eminence CA154
Eminence Alpha 4-4 tweeter
2x12 - 600/1200 Watt (2 Ohm Load): $2000
20.5”w x 28”t x 15”d
Eminence Beta 12a x2
Eminence Alpha 4-4 tweeter
POWER LEVELS
Class D output:
Dimensions:
20.5”w x 3.875”t x 9”d
50/100w: $800 (2 ohm min speaker load)
200/400w: $1100 (2 ohm min speaker load)
Dimensions:
20.5”w x 8.5”t x 9”d
600w: $1250 (2 ohm min speaker load)
1000w:$1500 (2 ohm min speaker load)

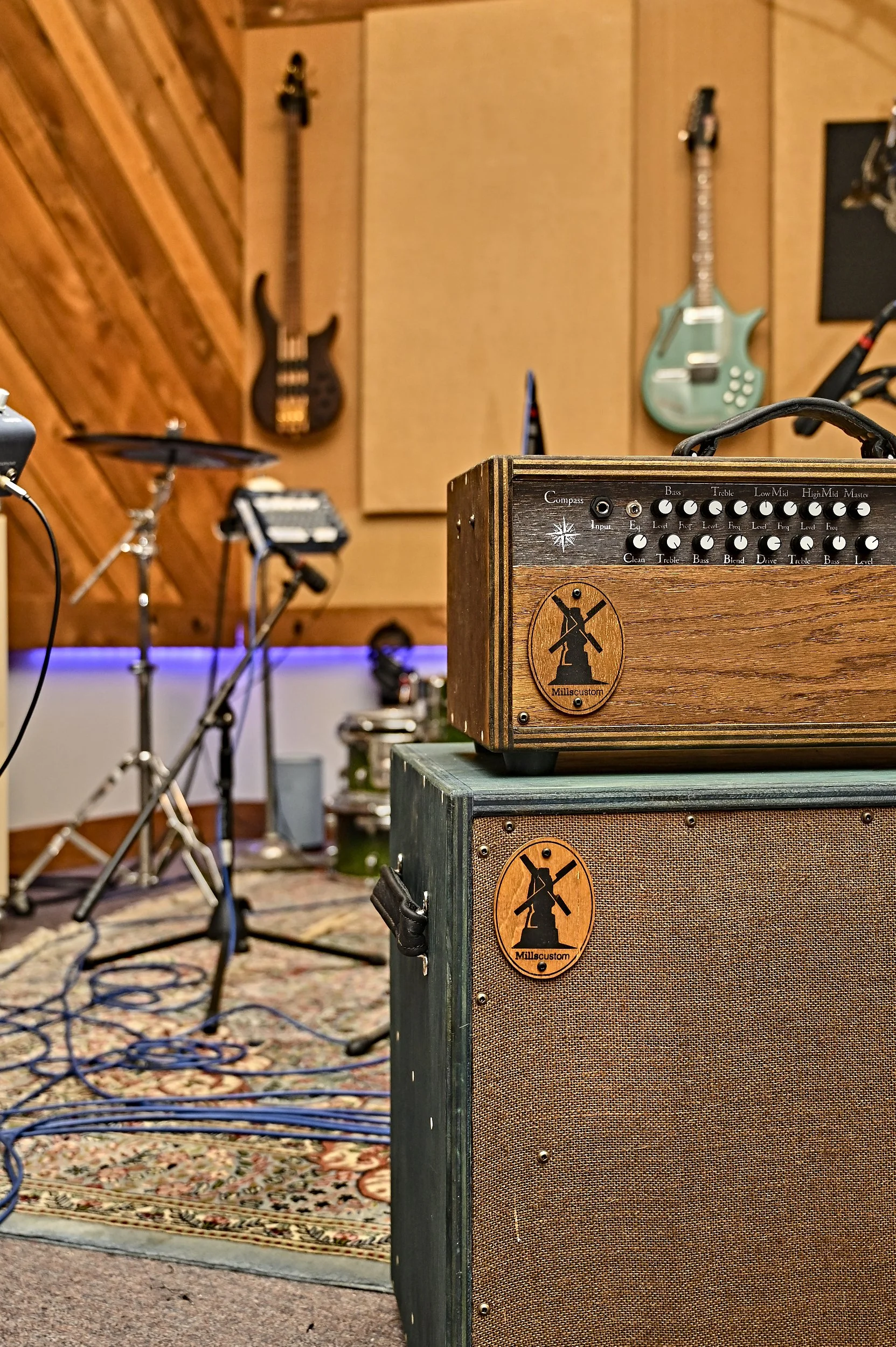

SHOWN:
Bass Head: Compass 600w Hybrid head
STAIN COLOR: Dark Walnut
Bass Cab: 1 x 15
Stain color: Turquoise
Grill: Brown
